IS62WV25616BLL Arduino Wiring: Complete Guide for Parallel SRAM Integration

External SRAM looks intimidating.
Wide buses. Many wires. Tight timing.

But once you understand the logic, it becomes predictable, powerful, and fast.

This guide explains how to wire and use the IS62WV25616BLL parallel SRAM with Arduino boards.
It is written for hardware-focused makers, embedded developers, and retro-computing enthusiasts who need real memory bandwidth, not slow serial storage.

“Fast memory is not optional. It defines what your system can become.” — Embedded Systems Design Principle

---

Understanding IS62WV25616BLL SRAM Basics

Static RAM (SRAM) stores data as long as power is present.
No refresh cycles. No erase delays. No wear limits.

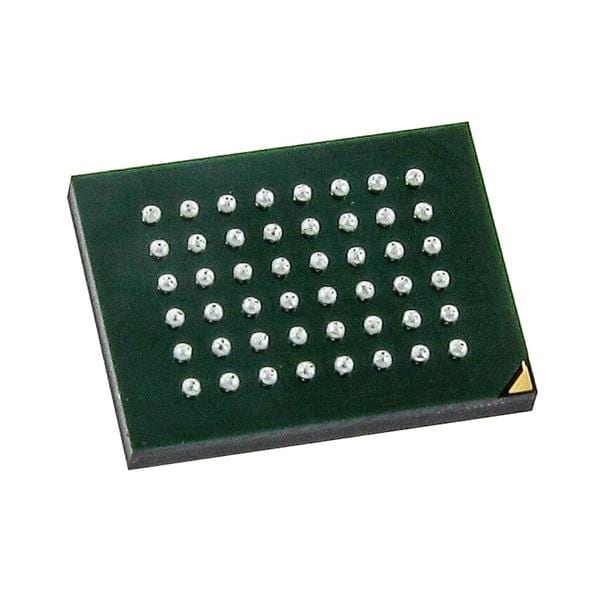

The IS62WV25616BLL is a high-speed, low-power parallel SRAM designed for microcontrollers, DSPs, and display buffers.

Unlike EEPROM or SPI RAM, SRAM behaves like true system memory.

When External SRAM Is Needed

Arduino’s internal memory is limited:

Board	SRAM
Arduino Uno	2 KB
Arduino Mega	8 KB
Arduino Due	96 KB

That fills up fast.

You need external SRAM when you work with:

• Frame buffers for TFT or VGA displays
• Audio or sensor data buffering
• Retro game emulation
• Large lookup tables
• High-speed logging before SD writes

SRAM shines when speed matters more than persistence.

---

Core Specifications Explained

The IS62WV25616BLL follows a 32K × 16-bit organization.

That equals 512 Kbits (64 KB) of ultra-fast memory.

Key Electrical Specs

Parameter	Value
Memory size	512 Kbit
Organization	32K × 16
Supply voltage	3.3 V
Access time	8–10 ns (grade dependent)
Standby current	Very low (CMOS)

Short sentence.
Big impact.

This chip is orders of magnitude faster than I²C or SPI memory.

---

Pinout and Electrical Characteristics

Parallel SRAM uses three signal groups.

Address Bus, Data Bus, Control Signals

Signal Type	Pins
Address	A0–A14
Data	D0–D15
Control	CE, OE, WE

That is 32 pins of logic, plus power and ground.

Control Pins Explained

• CE (Chip Enable)
  Activates the chip. HIGH = disabled.
• OE (Output Enable)
  Controls read output drivers.
• WE (Write Enable)
  LOW during write cycles.

Correct timing is critical.
Wrong order = corrupted data.

“Digital systems fail silently. Timing is truth.”

---

Arduino Compatibility and Hardware Planning

Not all Arduino boards are equal.

Choosing the Right Arduino Board

For this SRAM, pin count matters more than clock speed.

Board	Verdict
Arduino Uno	❌ Not recommended
Arduino Mega	✅ Best choice
Arduino Due	⚠️ Advanced users only

The Arduino Mega offers enough GPIO pins for:

• 15 address lines
• 16 data lines
• 3 control lines

Logic Level Compatibility

The SRAM is 3.3 V only.

Options:

• Use 3.3 V Arduino (Due, some ARM boards)
• Add level shifters
• Use series resistors for protection (not ideal)

Never connect 5 V logic directly.

---

Required Supporting Components

Bare wiring is risky.

Support parts stabilize signals and protect the chip.

Essential Components

• 0.1 µF decoupling capacitors (close to VCC pins)
• Bulk capacitor (1–10 µF nearby)
• Optional pull-ups on control lines
• Optional bus transceiver (74HC245)

Clean power = stable memory.

---

IS62WV25616BLL Arduino Wiring and Bus Design

Parallel buses need discipline.

Address Bus Wiring Strategy

• Connect A0–A14 directly to Arduino pins
• Keep wires short and parallel
• Avoid breadboards for final builds

Data Bus Direction Control

Data lines must switch direction:

• Write: Arduino → SRAM
• Read: SRAM → Arduino

You control direction by OE and WE timing.

Control Signal Wiring

Signal	Arduino Pin	Notes
CE	Digital pin	Active LOW
OE	Digital pin	Active LOW
WE	Digital pin	Active LOW

Never assert OE and WE at the same time.

That causes bus contention.

---

Practical Wiring Example (Arduino Mega)

Below is a simplified mapping example.

Example Pin Mapping Table

SRAM Pin	Arduino Mega
A0–A14	D22–D36
D0–D15	D37–D52
CE	D53
OE	D51
WE	D50

Common Wiring Mistakes

• Swapped address lines
• Floating OE or WE pins
• Long jumper wires
• Missing decoupling capacitors

SRAM does not forgive sloppy wiring.

---

Arduino Code for IS62WV25616BLL

Code is simple.
Timing is everything.

Basic Write Cycle Logic

1. Set address
2. Set data pins as OUTPUT
3. Assert CE LOW
4. Pulse WE LOW
5. Release WE, then CE

Basic Read Cycle Logic

1. Set address
2. Set data pins as INPUT
3. Assert CE LOW
4. Assert OE LOW
5. Read data
6. Release OE, then CE

Avoid digitalWrite() in performance-critical loops.

Use direct port manipulation for speed.

Method	Speed
digitalWrite	Slow
Direct PORT	Fast
Inline ASM	Fastest

---

Performance Optimization and Best Practices

Parallel SRAM is about throughput.

How to Go Faster

• Group address pins on same PORT
• Use bit masks
• Disable interrupts during access
• Match timing to datasheet limits

Signal Integrity Tips

• Short traces
• Ground plane if possible
• Avoid ribbon cables
• Use series resistors for ringing

“Most memory bugs are electrical, not logical.”

---

Real-World Applications

This chip unlocks serious projects.

Where IS62WV25616BLL Excels

• TFT or VGA frame buffers
• Oscilloscope-style data capture
• Audio sample buffering
• Z80 / 6502 emulation
• External heap for complex firmware

When SRAM Is Not the Right Choice

• Long-term storage → EEPROM or Flash
• Low-pin-count designs → SPI RAM
• Ultra-low power → FRAM

Choose the right memory for the job.

---

Comparison With Alternatives

Memory Type	Speed	Pins	Persistence
Parallel SRAM	⭐⭐⭐⭐⭐	High	No
SPI RAM	⭐⭐	Low	No
I²C EEPROM	⭐	Very Low	Yes
Flash	⭐⭐	Medium	Yes

Parallel SRAM is raw power.

---

Final Thoughts

Wiring the IS62WV25616BLL looks complex.
But complexity buys capability.

Once connected correctly, it behaves like real system memory.
Fast. Predictable. Powerful.

If you need speed, determinism, and control, this chip delivers.

---
